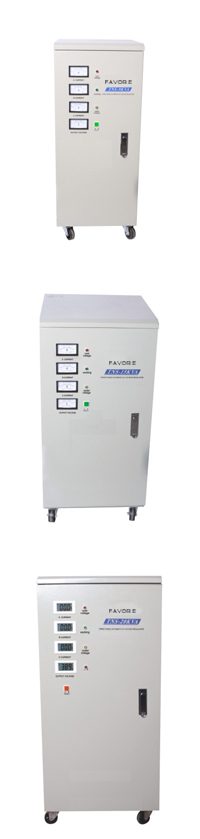

TNS Three Phase Fully Automatic Voltage Stabilizer

We are the professional TNS Three Phase Fully Automatic Voltage Stabilizer manufacturer and supplier,good quality with competitive price,welcome to contact us for enquiry.

TNS Three Phase Fully Automatic Voltage Stabilizer Description

Features

TNS(SVC) serise three-phase high accuracy full automatic AC voltage stabiliaers. It is combined the performance of the Series SVC single-phase products. the input phase system is three-phase and fourwire system, the output voltage is 220V of phase and 380V of line voltage, Within the roted capacity range, they also can be used for the equipment of which the souce voltage is single-phase 220V or three-phase 380V.

Specifications

Input Voltage	150V-250V, 160-250V
Output Voltage	220V±3%, 110V±3%,
Phase	Single-phase
Frequeney	50Hz/60Hz
Response time	Within 1 see. against 10% input
Environment temperature	-10℃-+40℃
Opposite degree of humidity	<95%
Waveform disortion	No-lack distortion in waveform
Insulation resistance	>5MΩ

Specification Dimensonsand Weight

TYPE	The Rated Power	External Package Size(cm)	N. W.(Kg)
TNS-1.5K	1.5	48.5×22.5×17	20
TNS-3K	3	48.5×22.5×17	24
TNS-4.5K	4.5	48.5×22.5×17	28
TNS-6K	6	39×31.5×77	59
TNS-9K	9	43.5×36×77	61
TNS-15K	15	48×36×70	93
TNS-20K	20	51.5×40.5×85	115
TNS-30K	30	64.5×46×109	140
TNS-40K	40	64.5×52.5×109	170
TNS-50K	50	64.5×52.5×109	185
TNS-60K	60	67×52.5×109	205
TNS-75K	75	67×56.5×130	230
TNS-100K	100	67×56.5×130	260
